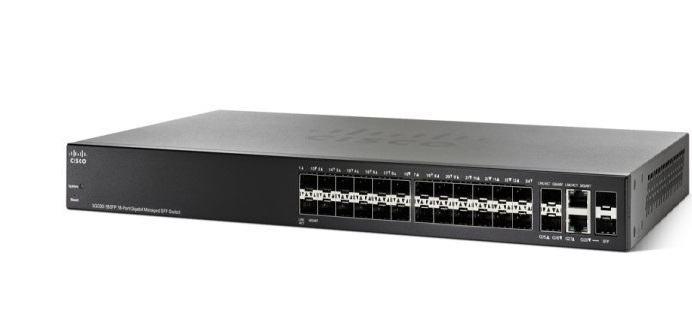

Thiết bị Switch Quang Cisco SG350-28SFP-K9-EU

Mã sản phẩm: SG350-28SFP-K9-EU
Số cổng SFP: 28 cổng
Số cổng RJ45: Không có
Số cổng uplink: 2 cổng Gigabit Ethernet (10/100/1000 Mbps)
Số cổng stacking: Không có
Hỗ trợ PoE: Không
Tính năng quản lý: Quản lý thông qua giao diện web, CLI (Command-Line Interface), SNMP (Simple Network Management Protocol), RMON (Remote Monitoring), DHCP (Dynamic Host Configuration Protocol)
Hỗ trợ VLAN, QoS, STP (Spanning Tree Protocol), Link Aggregation, IGMP Snooping, Access Control List (ACL), Static Routing, IPv6
Kích thước: 440 x 257 x 44 mm
Trọng lượng: 3,74 kg
Nguồn điện: 100-240VAC, 47-63Hz

Liên hệ chúng tôi để cho mã sản phẩm phù hợp với doanh nghiệp và nhu cầu của bạn

Hotline / Zalo: 076 86 86 086 – 0906 366 538 – 098 688 70 21

Liên hệ chuyên viên tư vấn 1 Liên hệ chuyên viên tư vấn 2

Liên hệ phòng doanh nghiệp - dự án

Mã: SG350-28SFP-K9-EU Danh mục: Cisco, Thiết Bị Switch Từ khóa: Cisco Switch, Switch, Switch Cisco, Thiết bị Switch Cisco, Thiết bị Switch Quang Cisco

Mô tả
Đánh giá (0)

Thiết bị Switch Quang Cisco SG350-28SFP-K9-EU là một switch mạng Ethernet với khả năng kết nối quang (SFP). Dưới đây là một số thông tin chi tiết về sản phẩm này:

Mã sản phẩm: SG350-28SFP-K9-EU
Số cổng SFP: 28 cổng
Số cổng RJ45: Không có
Số cổng uplink: 2 cổng Gigabit Ethernet (10/100/1000 Mbps)
Số cổng stacking: Không có
Hỗ trợ PoE: Không
Tính năng quản lý: Quản lý thông qua giao diện web, CLI (Command-Line Interface), SNMP (Simple Network Management Protocol), RMON (Remote Monitoring), DHCP (Dynamic Host Configuration Protocol)
Hỗ trợ VLAN, QoS, STP (Spanning Tree Protocol), Link Aggregation, IGMP Snooping, Access Control List (ACL), Static Routing, IPv6
Kích thước: 440 x 257 x 44 mm
Trọng lượng: 3,74 kg
Nguồn điện: 100-240VAC, 47-63Hz

Thiết bị Switch Quang Cisco SG350-28SFP-K9-EU được thiết kế để cung cấp kết nối quang cho mạng. Với 28 cổng SFP, switch này cho phép kết nối đáng tin cậy thông qua cáp quang, tăng cường tốc độ và hiệu suất truyền dữ liệu trong mạng của bạn. Nó hỗ trợ các tính năng quản lý mạng phổ biến và đáp ứng các tiêu chuẩn mạng hiện tại và tương lai. Đây là một giải pháp lý tưởng cho các doanh nghiệp có nhu cầu sử dụng kết nối quang trong mạng của mình.

28-Port Gigabit Managed SFP Switch CISCO SG350-28SFP-K9-EU

– 24 SFP Gigabit slots + 2 Gigabit copper/SFP combo.

– Performance: Switching capacity 56 Gbps, Forwarding rate 41.66 mpps wire-speed performance.

– Layer 2: Port grouping up to 8 groups, up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation.

– Layer 3: IPv4 routing Wirespeed routing of IPv4 packets up to 1K static routes and up to 256 IP interfaces, Classless Interdomain Routing (CIDR) Support for CIDR.

– QoS (Quality of Service): Priority levels 8 hardware queues, Scheduling Strict priority and weighted round-robin (WRR) Queue assignment based on DSCP and class of service (802.1p/CoS).

Đặc tính kỹ thuật

Model	SG350-28SFP-K9-EU
Performance
Switching capacity and forwarding rate	Capacity in Millions of Packets per Second (mpps) (64-byte packets): 41.66
All switches are wire speed and nonblocking	Switching Capacity in Gigabits per Second (Gbps): 56
Total System Ports	28 Gigabit Ethernet
RJ-45 Ports	24 Gigabit Ethernet
Up link port	2 Gigabit Ethernet combo
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K
MAC table	64K addresses
Layer 2 Switching
Spanning Tree Protocol	Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default 8 instances are supported Multiple Spanning Tree instances using 802.1s (MSTP)
Port grouping	Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP): Up to 8 groups, Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN	Support for up to 4096 VLANs simultaneously Port-based and 802.1Q tag-based VLANs MAC-based VLAN Management VLAN Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN Unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication CPE VLAN
Voice VLAN	Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS Auto voice capabilities deliver networkwide zero-touch deployment of voice endpoints and call control devices
Multicast TV VLAN	Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs (also known as MVR)
Q-in-Q VLAN	VLANs transparently cross a service provider network while isolating traffic among customers
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)	Protocols for automatically propagating and configuring VLANs in a bridged domain
Unidirectional Link Detection (UDLD)	UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and blackholing of traffic in switched networks
Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2	Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping	IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 1K multicast groups (source-specific multicasting is also supported)
IGMP Querier	IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
Head-Of-Line (HOL) blocking	HOL blocking prevention
Loopback Detection	Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
Layer 3
IPv4 routing	Wirespeed routing of IPv4 packets Up to 1K static routes and up to 256 IP interfaces
IPv6 routing	Wirespeed routing of IPv6 packets
Classless Interdomain Routing (CIDR)	Support for CIDR
Layer 3 Interface	Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
DHCP relay at Layer 3	Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay	Relay of broadcast information across Layer 3 domains for application discovery or relaying of bootP/DHCP packets
DHCP Server	Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes Support for DHCP options
Security
Secure Shell (SSH) Protocol	SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH v1 and v2 are supported
Secure Sockets Layer (SSL)	SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch
IEEE 802.1X (Authenticator role)	802.1X: RADIUS authentication and accounting, MD5 hash; guest VLAN; unauthenticated VLAN, single/multiple host mode and single/multiple sessions Supports time-based 802.1X Dynamic VLAN assignment
Web-based authentication	Web based authentication provides network admission control through web browser to any host devices and operating systems
STP Bridge Protocol Data Unit (BPDU) Guard	A security mechanism to protect the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port
STP Root Guard	This prevents edge devices not in the network administrator’s control from becoming Spanning Tree Protocol root nodes
DHCP snooping	Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as DHCP Servers
IP Source Guard (IPSG)	When IP Source Guard is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP Address Spoofing
Dynamic ARP Inspection (DAI)	The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination addresses in the ARP packet. This prevents man-in-the-middle attacks
IP/MAC/Port Binding (IPMB)	The preceding features (DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection) work together to prevent DOS attacks in the network, thereby increasing network availability
Secure Core Technology (SCT)	Makes sure that the switch will receive and process management and protocol traffic no matter how much traffic is received
Secure Sensitive Data (SSD)	A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plaintext or encrypted is provided according to the user-configured access level and the access method of the user
Layer 2 isolation Private VLAN Edge (PVE) with community VLAN	PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks
Port security	The ability to lock source MAC addresses to ports and limits the number of learned MAC addresses
RADIUS/TACACS+	Supports RADIUS and TACACS authentication. Switch functions as a client
Storm control	Broadcast, multicast, and unknown unicast
RADIUS accounting	The RADIUS accounting functions allow data to be sent at the start and end of services, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session
DoS prevention	Denial-Of-Service (DOS) attack prevention
ACLs	Support for up to 512 rules Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag, time-based ACLs supported
Quality of Service
Priority levels	8 hardware queues
Scheduling	Strict priority and Weighted Round-Robin (WRR)Queue assignment based on DSCP and class of service (802.1p/CoS)
Class of service	Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based; Differentiated Services (DiffServ); classification and remarking ACLs, trusted QoS
Rate limiting	Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based
Environmental
Dimensions	440 x 44 x 257 mm
Weight	2.7 kg
