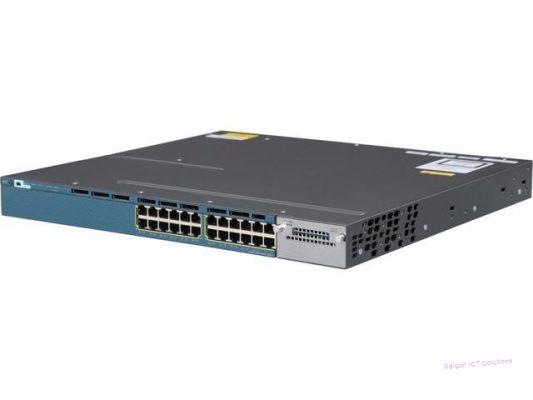

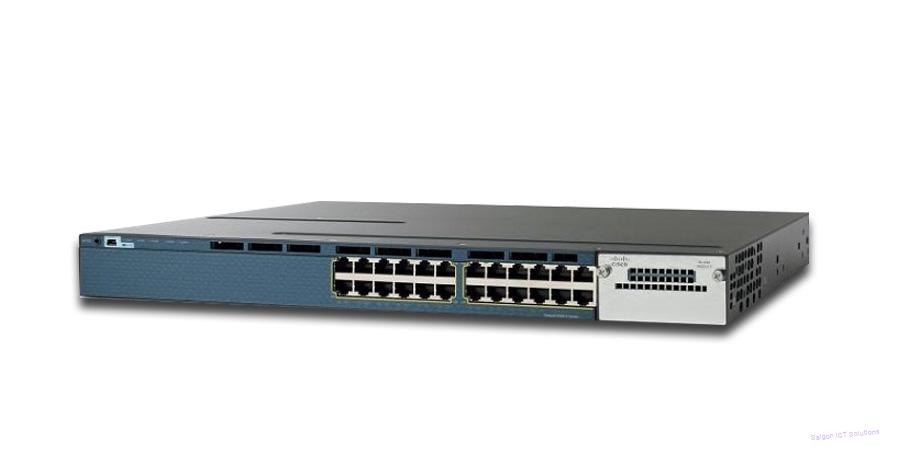

Switch CISCO Catalyst 3560 WS-C3560X-24T-L

Cisco Catalyst WS-C3560X-24T-L is 24 Gigabit Ethernet ports standalone switch with no stacking option in LAN base feature set. Four optional network modules and license-base software feature provide flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. LAN base feature set offers up to 255-VLANs and comprehensive layer 2 feature with static routing and SVI interface supporting. WS-C3560X-24T-L is designed for enterprise access layer switching; however, customers can transparently upgrade the software feature to by purchasing either IP base license or IP services license to activity layer 3 capability, 1005 VLANs supporting. WS-C3560X-24T-L comes with one default power supply module, customers can purchase additional power supply insert into power supply bay 2 in order to power redundancy.

WS-C3560X-24T-L

Cisco Catalyst 3560-X Series Switch

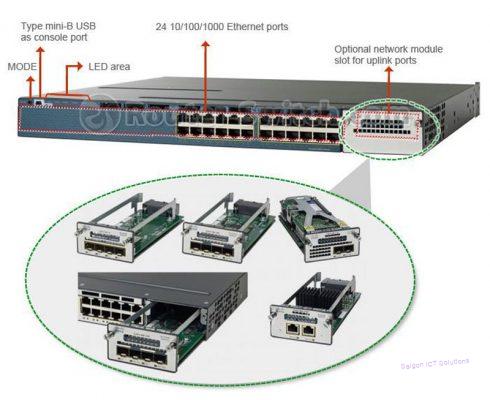

24 * 10/100/1000 Gigabit Ethernet ports with optional uplink network modules

Dual redundant, modular power supplies and fans

LAN base feature set with upgrade option to IP base or IP service

Layer 2 switching with static routing and SVI supporting

64MB flash and 256 memory (DRAM)

USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
