Tổng quan

Dòng: Z Series – tường lửa thế hệ mới, quản lý đám mây (cloud-managed) phù hợp cho doanh nghiệp vừa và nhỏ, khách sạn, trường học, nhà máy, bệnh viện…
Các chức năng bảo mật tích hợp: IPS, Antivirus (AV), kiểm soát ứng dụng, chống DoS/DDoS, port scan, traffic learning, SSL VPN, IPsec VPN, URL filtering, policy simulation, chẩn đoán tự động

Hiệu năng & Licensing

Cấu hình mặc định (chassis):
- Firewall: 10 Gbps
- Mixed traffic: 1 Gbps
- IPS: 900 Mbps
- NGFW (firewall + IPS + app ctrl): 850 Mbps
- Threat Protection (IPS + AV + app ctrl + malware): 800 Mbps
Mở rộng hiệu năng bằng license 1 G (tăng lên 2 G) hoặc 2 license (tổng 3 G)

Thông số phần cứng Tường lửa NGFW Ruijie RG-WALL 1600-Z3200-S

Thông số	Giá trị
Cổng mạng	8×1 GbE RJ‑45, 1×1 Gb SFP, 1×10 Gb SFP+
Quản lý	1×10/100/1000 RJ-45 (chia đôi cổng Ge0/0)
Console, USB	1×console RJ-45, 2×USB 2.0
Kích thước	440×200×43.6 mm (1U), nặng 2.9 kg
SSD/HDD	Không có, có thể thêm SATA 1 TB
Nguồn, tiêu thụ	100‑240 V, < 25 W
Nhiệt độ	0–45 °C; 5–95 % RH

Tính năng nổi bật

Port scan + Traffic learning để đề xuất chính sách tự động, dễ triển khai

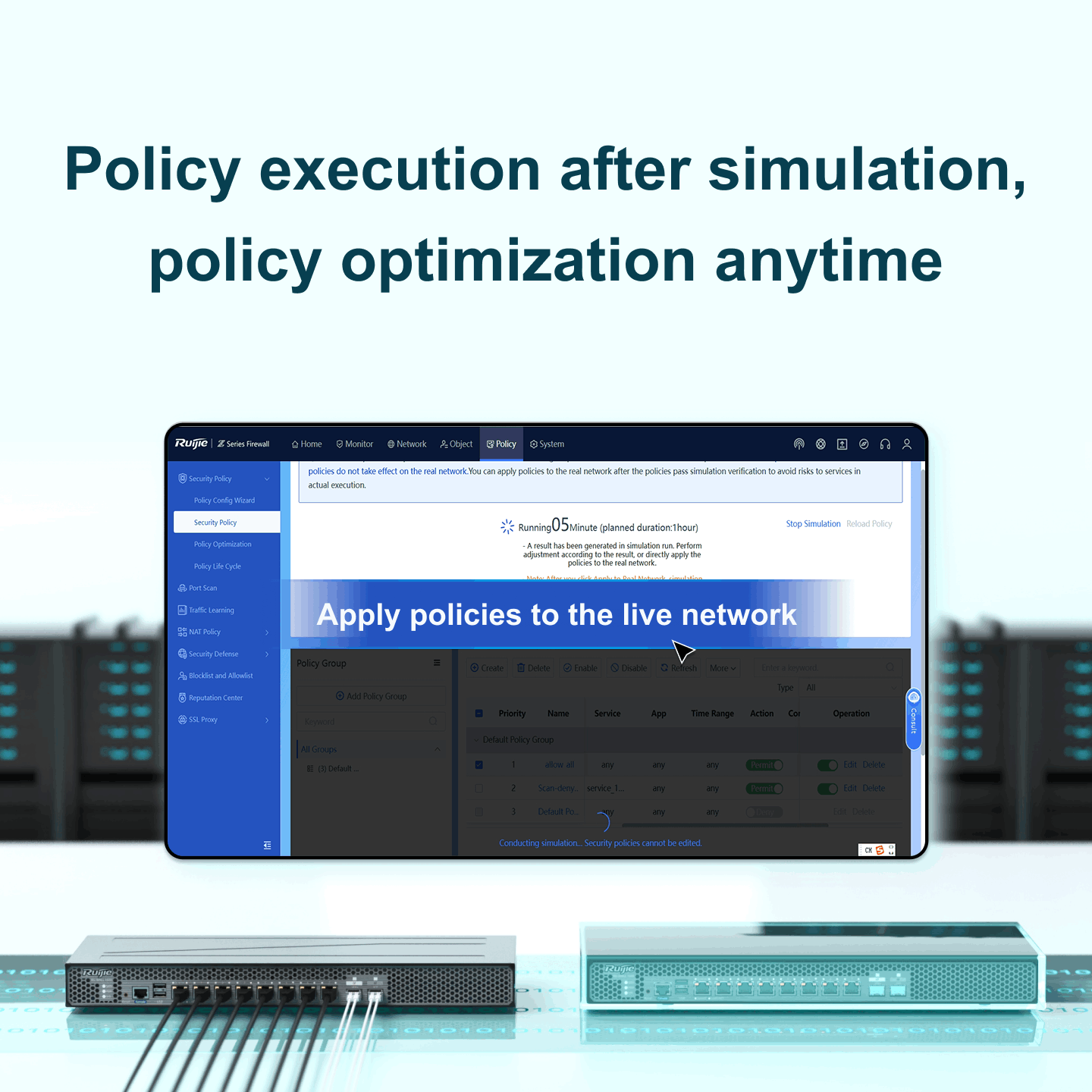

Chính sách mô phỏng & tối ưu hóa trước khi áp dụng, giảm rủi ro ảnh hưởng dịch vụ
Trung tâm chẩn đoán thông minh: fault-locating tự động, packet capture, service/health analysis
Quản lý đám mây Ruijie Cloud & App Reyee: O&M, push config, monitoring từ xa, hỗ trợ di động, cập nhật OTA, API tích hợp
Hot patching và fast recovery, thời gian khôi phục forwarding chỉ trong vài giây

Kết luận

RG‑WALL 1600‑Z3200‑S thực sự là một giải pháp NGFW mạnh mẽ dành cho các tổ chức cần:

Bảo mật toàn diện
Triển khai nhanh với policy thông minh
Quản lý tập trung qua cloud/mobile
Hiệu năng tối đa ~3 Gbps khi có license mở rộng

Product Performance Tường lửa NGFW Ruijie RG-WALL 1600-Z3200-S

Firewall Throughput4	Firewall (Traffic Mix)	IPS1	NGFW1,2	Threat Protection1,3
10 Gbps	1 Gbps	900 Mbps	850 Mbps	800 Mbps
10 Gbps	2 Gbps	1.6 Gbps	1.2 Gbps	900 Mbps
10 Gbps	3 Gbps	2 Gbps	1.6 Gbps	1 Gbps
Combination of product and performance licenses: 1G: RG-WALL 1600-Z3200-S chassis 2G: RG-WALL 1600-Z3200-S chassis + one RG-WALL 1600-Z3200-S-1G-LIC performance license 3G: RG-WALL 1600-Z3200-S chassis + two RG-WALL 1600-Z3200-S-1G-LIC performance licenses

System Performance and Capacity	RG-WALL 1600-Z3200-S
Firewall throughput of IPv4 packets (1518-byte UDP packets)4	10 Gbps
Firewall throughput (packets per second)	1.8 Mpps
Concurrent sessions (TCP)	500000
New sessions/second (TCP)	50000
Firewall policies	3000
SSL VPN throughput	384 Mbps
Concurrent SSL VPN users (recommended maximum, tunnel mode)	500
Application control throughput (HTTP 64K)2	3 Gbps
IPsec VPN throughput (512-byte)	1.3Gbps
Gateway-to-Gateway IPsec VPN tunnels	1000

Note:

All performance values are the maximum values and may vary depending on system configuration.

The performance values of IPS (mixed traffic), application control, NGFW, and threat protection are measured with logging enabled.
NGFW performance is measured with firewall, IPS, and application control enabled.
Threat protection performance is measured with firewall, IPS, application control, and malware protection enabled.
Firewall throughput is the maximum forwarding performance (1518-byte UDP packets) of hardware.

Hardware Specifications

Dimensions and Weight

Dimensions and Weight	RG-WALL 1600-Z3200-S
Product dimensions (W x D x H)	440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in.; without rubber pads)
Shipping dimensions (W x D x H)	520 mm x 345 mm x 106 mm (20.47 in. x 13.58 in. x 4.17 in.)
Product weight	2.9 kg
Shipping weight	4.0 kg
Form factor	1 U rack

Port Specifications

Port Specifications	RG-WALL 1600-Z3200-S
Fixed 1G electrical port	8 × 10/100/1000 Base-T RJ-45 Ethernet electrical ports with auto-negotiation
Fixed 1G optical port	1 × 1000BASE-SX/LX/ZX Ethernet optical port
Fixed 10G optical port	1 × 10GBASE-SR/LR/ZR Ethernet optical port (with 10G/1G auto-negotiation)
Fixed management port	1 × 10/100/1000 Base-T RJ-45 Ethernet port with auto-negotiation (reusing port Ge 0/0)
Console port	1 x RJ-45 console port (serial console port)
USB port	2 x USB 2.0 ports

Storage Specifications

Storage	RG-WALL 1600-Z3200-S
Hard disk	No hard disk for factory delivery. A 1 TB SATA hard drive can be added.

Power Supply and Consumption

Power Supply and Consumption

RG-WALL 1600-Z3200-S

Power supply

Built-in single power module:

l Rated input voltage: 100–240 V; 50–60 Hz

l Rated input current: 0.65 A

Max. Power Consumption

< 25 W

Environment and Reliability

Environment and Reliability	RG-WALL 1600-Z3200-S
Operating temperature	0°C to 45°C (32°F to 113°F)
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Operating humidity	5% RH to 95% RH (non-condensing)
Storage humidity	5% RH to 95% RH (non-condensing)
Noise level	43.7 dB
Operating altitude	0–5000 m (0–16404 ft.)
Compliance	EMC SZEM2302000974ATV LVD SZES2302001034AT

Software Specifications

Network

Network	RG-WALL 1600-Z3200-S
Physical interface	Configuring interfaces as LAN/WAN interfaces; three IP address assignment modes for WAN interfaces: PPPoE, DHCP, and static IP modes Configuring routing or transparent mode for interfaces
Sub-interface	Configuring sub-interfaces and VLAN IDs
Bridge interface	Configuring interfaces in transparent mode as bridge interfaces
Static route	Configuring IPv4 static routes
PBR	Configuring policy-based routing (PBR)
Routing table	Overall routing information of a device
DHCP server	DHCP server; configuring DHCP address pools
Address management list	Assigned DHCP address list
DNS server	Configuring DNS addresses for devices

Object

Object	RG-WALL 1600-Z3200-S
Address/Address group	Configuring address objects in IP address/range format
Zone	Configuring security zones
Application and application group	Configuring application types in application/application group mode
Service/Service group	Configuring service objects; common default port services supported
Time plan	Configuring time objects; one-off time plans and cyclic time plans supported
Virus protection template	Configuring content object templates; predefined virus protection templates supported
Virus protection template	Configuring virus protection templates Configuring quick scan or deep scan; configuring templates based on protocols and directions; setting excluded viruses
Intrusion prevention template	Configuring content object templates; predefined intrusion prevention templates supported
Intrusion prevention template	Configuring intrusion prevention templates Configuring rule filters based on objects, severity, protocols, threat types; setting excluded rules
SSL proxy certificate	Adding, importing, deleting, viewing, and downloading SSL proxy certificates Configuring a global SSL proxy certificate
Server certificate	Importing, deleting, viewing, and downloading server certificates
Security rule base	Viewing default security rules in the IPS library

Policy

Policy	RG-WALL 1600-Z3200-S
Traffic learning	Traffic learning to record destination IP addresses and port numbers as well as abnormal traffic
Traffic learning	Export of traffic learning logs
NAT	NAT and NAT policies
Policy import	Batch import of NAT policies
ALG	Common NAT ALG services in NAT policy
Server mapping	Server port mapping in NAT policy
Address pool	NAT address pool status display in NAT policy
Security policy	Configuring security policies; customizing policies based on parameters including objects, contents, and zones; policy list
Security policy	Batch import of security policies
Simulation policy	Simulating policy execution in the simulation space to check whether uncertain security policies can achieve expected effects
Policy configuration wizard	Security policy configuration wizard for conducting port scan, performing configurations, testing configurations, and other steps to generate security policies
Policy optimization	Sorting out configured security policies and analyzing policies to identify redundant, expired, and conflicting policies
Policy lifecycle	Full lifecycle display of security policies, including detailed records of policy changes
Port scan	Port scan of configured IP ranges for all ports or selected ports; policy creation prompt for scan results
DoS/DDoS attack defense	Different DDoS attack defense policies in security defense
ARP attack defense	Anti-ARP spoofing, ARP flooding suppression, and other functions in security defense
Local defense	Configuring local defense policies in security defense
Blocklist/Allowlist	Configuring global blocklists and allowlists
SSL proxy policy	Configuring SSL proxy policies; customizing policies based on parameters including objects, contents, and zones; policy list
SSL proxy template	Configuring SSL proxy templates; setting the template type to protecting client or server
Allowlist	Configuring domain name allowlists and application allowlists

System

System	RG-WALL 1600-Z3200-S
Administrator	Creating device administrators, including account names, passwords, and description
Administrator role	Setting multiple administrator roles and assigning different permissions
Clock configuration	Configuring system time; NTP service configuration supported
Service parameter	Configuring service ports for a device, including web (HTTPS), SSH, and other ports
Authorization management	Managing licenses of devices, including license import and activation
Device information	Viewing device information, including the product name, SN, and MAC address, version information, running time, and license information
System restart	Restarting the system on the web UI
System upgrade	Upgrading the system
Patch installation	Downloading and installing patches for upgrade
Configuration backup	Import and export of device configurations
Factory settings restoration	Restoring factory settings on the web UI
Signature library upgrade	Automatic signature library upgrades based on the latest versions on the cloud
Cloud management platform	Enabling or disabling unified management on the cloud management platform
Device binding	Adding devices to the cloud management platform by scanning a QR code
Ping	Ping for troubleshooting
Tracert	Tracert for troubleshooting
Packet obtaining tool	Tool for obtaining packets and exporting results
One-click collection	Collecting fault information with one click
Device health	Device health diagnosis
Service diagnosis	Service continuity diagnosis
Breakdown record	Breakdown information records
Device log retention	Device log retention
External APIs	RESTful APIs for third-party interconnection
