Thiết bị WiFi Cisco Meraki MR56-HW

Bộ phát Wifi MR56-HW Meraki MR56 Wi-Fi 6 Indoor AP

1 × 5 Gbps Multigigabit Ethernet port
802.3at PoE (30W) or DC power adapter
1 × 2.4 GHz 802.11b/g/n/ax
1 × 5 Ghz 802.11a/n/ac/ax
5.9 Gbit/sec max rate
License Options: Enterprise 1Yr, 2Yr, 3Yr; Advanced 1Yr, 2Yr, 3Yr

Liên hệ chuyên viên tư vấn 1 Liên hệ chuyên viên tư vấn 2

Liên hệ phòng doanh nghiệp - dự án

Mô tả
Đánh giá (0)

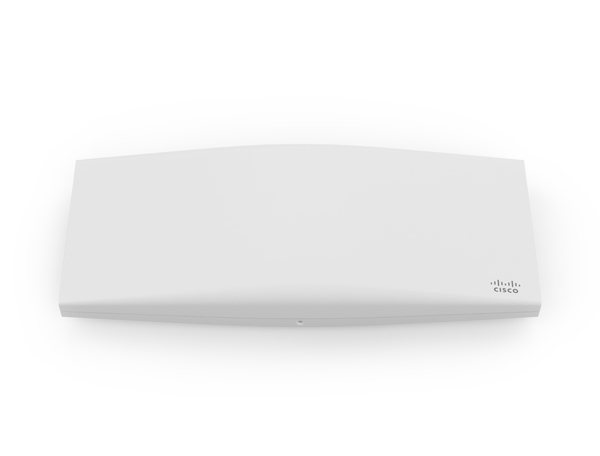

Thiết bị WiFi Cisco Meraki MR56-HW

Cisco Meraki MR56-HW là điểm truy cập 802.11ax hỗ trợ 8-stream UL/DL MU-MIMO, được quản lý trên nền tảng đám mây, nâng cao hiệu suất và hiệu quả mạng không dây. Được thiết kế để triển khai trong văn phòng, trường học, bệnh viện, cửa hàng và khách sạn, MR56 mang lại thông lượng cao, bảo mật cấp doanh nghiệp và quản lý đơn giản.

View Datasheet MR56

MR56 cung cấp tốc độ tổng hợp tối đa 5,9 Gbps với 2 băng tần 2,4 GHz và 5 GHz đồng thời. Một băng tần thứ ba chuyên dụng cung cấp WIDS / WIPS thời gian thực để tối ưu hóa RF tự động và băng tần tích hợp thứ tư cung cấp chức năng Bluetooth scanning và beaconing.

Specifications
Radios	2.4 GHz 802.11b/g/n/ax client access radio 5 GHz 802.11a/n/ac/ax client access radio 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operation of all four radios Supported frequency bands (country-specific restrictions apply) Supported frequency bands (country-specific restrictions apply): 2.412-2.484 GHz 5.150-5.250 GHz (UNII-1) 5.250-5.350 GHZ (UNII-2) 5.470-5.600, 5.660-5.725 GHz (UNII-2e) 5.725 -5.825 GHz (UNII-3)
Antenna	Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities	DL-OFDMA, UL-OFDMA, TWT support, BSS Coloring 8 x 8 multiple input, multiple output (MIMO) with eight spatial streams on 5GHz 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 2.4GHz SU-MIMO, UL MU-MIMO** and DL MU-MIMO support Maximal ratio combining (MRC) & beamforming 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax) Up to 1024-QAM on both 2.4 GHz & 5 GHz bands Packet aggregation
Power	Power over Ethernet: 42.5 – 57 V (802.3at compliant) Alternative: 12 V DC input Power consumption: 22W max (802.3at) Power over Ethernet injector and DC adapter sold separately
Interfaces	1x 100/1000/2.5G/5G BASE-T Ethernet (RJ45) 1x DC power connector (5.5 mm x 2.5 mm, center positive)
Mounting	All standard mounting hardware included Desktop, ceiling, and wall mount capable Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes Bubble level on mounting cradle for accurate horizontal wall mounting
Physical Security	Two security screw options (included) (3.5 mm long and 2.5 mm diameter and 5 mm head) Kensington lock hard point Concealed mount plate with anti-tamper cable bay
Environment	Operating temperature: 32 °F to 104 °F (0 °C to 40 °C) Humidity: 5 to 95% non-condensing
Physical Dimensions	12.83” x 5.54” x 1.76” (32.6 cm x 14.079 cm x 4.47 cm), not including deskmount feet or mount plate Weight: 1 kg
Security	Integrated Layer 7 firewall with mobile device policy management Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal Flexible guest access with device isolation VLAN tagging (802.1q) and tunneling with IPsec VPN PCI compliance reporting WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 – Personal, WPA3 – Enterprise, WPA3 – Enhanced Open (OWE) EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM TKIP and AES encryption Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration Cisco ISE integration for Guest access and BYOD Posturing
Quality of Service	Advanced Power Save (U-APSD) WMM Access Categories with DSCP and 802.1p support Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, & 802.11r for fast Layer 2 roaming Distributed or centralized layer 3 roaming
Analytics	Embedded location analytics reporting and device tracking Global L7 traffic analytics reporting per network, per device, & per application
LED Indicators	1 power/booting/firmware upgrade status
Regulatory	RoHS For additional country-specific regulatory information, please contact Meraki sales
Warranty	Lifetime hardware warranty with advanced replacement included
Ordering Information	MR56-HW: Meraki MR56 Cloud Managed 802.11ax AP MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU) MA-INJ-4-XX: Meraki Gigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU) MA-INJ-5-XX: Meraki Multigigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU) Note: Meraki access point license required.
Compliance and Standards
IEEE Standards	802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, and 802.11u
Safety Approvals	CSA and CB 60950 & 62368 Conforms to UL 2043 (Plenum Rating)
Radio Approvals	Canada: FCC Part 15C, 15E, RSS-247 Europe: EN 300 328, EN 301 893 Australia/NZ: AS/NZS 4268 Mexico: IFT, NOM-208 Taiwan: NCC LP0002 For additional country-specific regulatory information, please contact Meraki Sales
EMI Approvals (Class B)	Canada: FCC Part 15B, ICES-003 Europe: EN 301 489-1-17, EN 55032, EN 55024 Australia/NZ: CISPR 22 Japan: VCCI
Exposure Approvals	Canada: FCC Part 2, RSS-102 Europe: EN 50385, EN 62311, EN 62479 Australia/NZ: AS/NZS 2772
