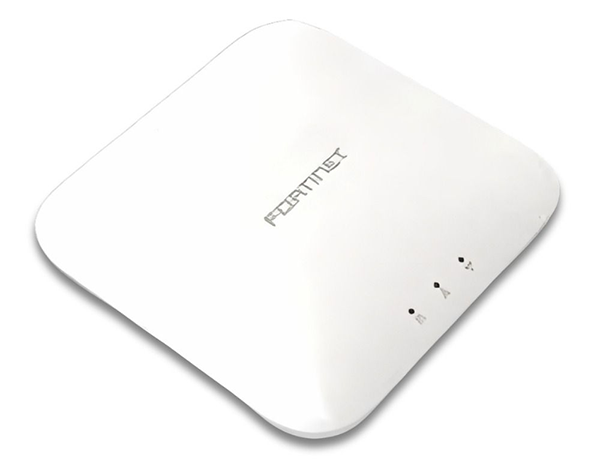

Thiết bị WiFi 7 Fortinet FAP-241K
Thiết bị WiFi 7 Fortinet FAP-241K
Thiết bị Fortinet FortiAP FAP-241K là Access Point Wi-Fi 7 indoor chuẩn doanh nghiệp, thiết kế nhỏ gọn hơn dòng FAP-243K nhưng vẫn đáp ứng tốt nhu cầu văn phòng SMB, khách sạn, showroom, trường học, đặc biệt khi quản lý đồng bộ với hệ sinh thái Fortinet.
Thông số nổi bật Thiết bị WiFi 7 Fortinet FAP-241K
- Chuẩn Wi-Fi 7 (802.11be)
- Tri-band: 2.4GHz / 5GHz / 6GHz
- 4 Radio: 3 radio Wi-Fi + 1 radio scanning
- 2×2 MU-MIMO
- Tốc độ tối đa: ~9.3 Gbps
- 2.4GHz: 688 Mbps
- 5GHz: 2.88 Gbps
- 6GHz: 5.76 Gbps
- 6 antenna trong
- 1 cổng 10GbE + 1 cổng 1GbE
- PoE+ / 802.3bt
- BLE / Zigbee tích hợp
- Hỗ trợ WPA3, mesh, captive portal, zero-touch deployment
Ưu điểm Thiết bị WiFi 7 Fortinet FAP-241K
- Wi-Fi 7 tốc độ cao, phù hợp môi trường nhiều thiết bị truy cập cùng lúc.
- Có cổng uplink 10GbE, tối ưu cho mạng nội bộ tốc độ cao.
- Ăng-ten trong, thiết kế đẹp, phù hợp lắp văn phòng, khách sạn.
- Quản trị tập trung qua FortiGate, đồng bộ chính sách bảo mật với Fortinet Security Fabric.
Lưu ý triển khai:
Để chạy FAP-241K ổn định nên dùng:
- FortiGate 90G hoặc cao hơn
- FortiSwitch PoE+ hoặc PoE++
- FortiOS 7.4.4+ để hỗ trợ Wi-Fi 7 K-series đầy đủ.
| Datasheet Fortinet FortiAP FAP-241K-S | |
| Specifications | |
| Type | Indoor AP |
| Number of Radios | 4-Radio 2.4GHz + 5.0GHz + 6GHz + Tri-band scan |
| Number of Antennas |
6 Internal Wi-Fi antennas: x2 Dual band + x2 6GHz band + x2 Tri-band Scanning, 1 Internal 2.4GHz band BLE/ZigBee antenna
|
| Antenna Type and Peak Gain | PIFA 2.4/5GHz dual band antenna: 4.7 dBi for 2.4GHz, 5.4 dBi for 5 GHz Alford loop 6GHz antenna: 5.7 dBi for 6GHz band PIFA Tri-band antenna: 5.0 dBi for 2.4GHz, 5.7 dBi for 5.0GHz, and 5.35 dBi for 6GHz band PFA BLE antenna: 4.6 dBi for 2.4GHz |
| Frequency Bands (GHz) | 2.4GHz Band: ISM 2.4-2.484GHz 5.0GHz Band: UNII-1 5.15-5.25GHz UNII-2A 5.25-5.35GHz UNII-2C 5.47-5.73GHz UNII-3 5.725-5.85GHz UNII-4 5.85-6.895GHz |
| Radio 1 Capabilities |
Frequency band: 2.4GHz, Channel width: 20/40MHz, Modulation: BPSK, QPSK, 64/256/1024 QAM, MIMO Chains: 2×2 Service
|
| Radio 2 Capabilities |
Frequency band: 5.0GHz UNII-1 to UNII-4, Channel width: 20/40/80/160/240MHz, Modulation: BPSK, QPSK, 64/256/1024/4096 QAM, MIMO Chains: 2×2 Service
|
| Radio 3 Capabilities |
Frequency band: 6.0GHz UNII-5 to UNII-8, Channel width: 20/40/80/160/320MHz, Modulation: BPSK, QPSK, 64/256/1024/4096 QAM, MIMO Chains: 2×2 Service
|
| Radio 4 Capabilities |
Frequency band: 2.4/5.0/6.0GHz, Channel width: 20/40/80/160MHz, Modulation: BPSK, QPSK, 64/256/1024 QAM, MIMO Chains: 2×2 Scanning
|
| Maximum Data Rate |
2.4GHz band: up to 688 Mbps, 5.0GHz band: up to 4.324 Gbps, 6.0GHz band: up to 5.765 Gbps
|
| Bluetooth Low Energy (BT/BLE) Radio |
Bluetooth scanning and iBeacon advertisement @10 dBm max TX power
|
| GNSS | |
| Interfaces | x1 100M/1000M/2.5G/5.0G/10G Multigigabit Ethernet (RJ45) x1 10M/100M/1000M/Ethernet (RJ45) x1 Type 2.0 USB at 2.5W x1 RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | x1 802.3bt PoE default |
| Simultaneous SSIDs | Up to 24 |
| EAP Type(s) |
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
|
| User/Device Authentication |
WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist and whitelist
|
| Maximum Tx Power (Conducted) |
2.4GHz band: 25 dBm/316 mW (2 chains combined), 5.0GHz band: 26 dBm/400 mW (2 chains combined), 6.0GHz band: 23 dBm/200 mW (2 chains combined @320MHz BW)
|
| Kensington Lock | Yes |
| IEEE Standards |
802.11a, 802.11b, 802.11be, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1X, 802.3ad, 802.3at, 802.3bt, 802.3az
|
| SSID Types Supported | Local-Bridge, Mesh, and Tunnel |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1, Radio2, and Radio3) |
| Cellular Co-existence | Yes |
| LED Off Mode | Yes |
| Advanced 802.11 Features |
OFDMA, Spatial Reuse (BSS Coloring), UL MU-MIMO, DL MU-MIMO, Enhanced Target Wake Time (TWT)
|
| ZeroWait DFS | No |
| Onboard Security Functions | UTP Capable: No, UTP Features: N/A |
| Wireless Monitoring Capabilities |
Rogue Scan radio modes: Background, Dedicated, WIPS / WIDS radio modes: Background, Dedicated (recommended), Packet Sniffer Mode: Yes, Spectrum Analyzer: Yes
|
| Dimensions | 7.48 x 7.48 x 2.01 inches (190 x 190 x 51 mm) |
| Weight | 2.4 lbs (1.09 kg) |
| Package (shipping) Weight | 4.4 lbs (2.0 kg) |
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Standard Mounting Kit for Ceiling, T-Rail, and Wall |
| Environment | |
| Power Supply |
802.3bt PoE: GPI-145 or 802.3at PoE: GPI-130 with USB disabled or 12V, 3A, 36 Watt DC power supply SP-FAP400-PA-XX
|
| Power Consumption (Max) | 26.1 W |
| PoE Mode | |
| Humidity | 5% to 90% non-condensing |
| Operating/Storage Temp. | 32°F to 122°F (0°C to 50°C) / -22°F to 158°F (-30°C to 70°C) |
| Directives | Low Voltage Directive, RoHS |
| UL2043 Plenum Material | Yes |
| Mean Time Between Failures | >10 Years |
| IP Rating | N/A |
| Surge Protection | Built In |
| Hit-less PoE Failover | N/A |
| Certifications | Wi-Fi Alliance Certified: No, DFS: No |
| Warranty | Limited Lifetime Warranty |
