Thiết bị tường lửa FortiGate 50G- Technologys

IPS Throughput: 2.25 Gbps
NGFW Throughput: 1.25 Gbps
Threat Protection Throughput: 1.1 Gbps
IPSec VPN Throughput: 4.5 Gbps
SSL Inspection Throughput: 1.3 Gbps
Concurrent Sessions: 720,000
New Sessions/sec: 85,000
Cổng kết nối:
- 1 x GE RJ45 WAN
- 3 x GE RJ45 LAN
- 1 x GE RJ45 FortiLink
- 1 x USB Port
Hỗ trợ: SD-WAN, IPS, AV, Web Filtering, VPN, Application Control, ZTNA

Liên hệ chuyên viên tư vấn 1 Liên hệ chuyên viên tư vấn 2

Liên hệ phòng doanh nghiệp - dự án

Mô tả
Đánh giá (0)

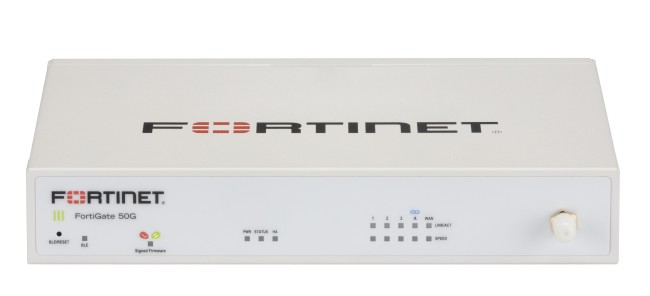

Thiết bị tường lửa FortiGate 50G

Thiết bị tường lửa FortiGate 50G

FortiGate 50G là thiết bị tường lửa Next-Generation Firewall (NGFW) mới của Fortinet, phù hợp cho doanh nghiệp nhỏ, văn phòng chi nhánh, cửa hàng, với hiệu năng mạnh hơn dòng 40F và hỗ trợ tốt các tính năng bảo mật nâng cao.

Thông số kỹ thuật nổi bật Thiết bị tường lửa FortiGate 50G

IPS Throughput: 2.25 Gbps
NGFW Throughput: 1.25 Gbps
Threat Protection Throughput: 1.1 Gbps
IPSec VPN Throughput: 4.5 Gbps
SSL Inspection Throughput: 1.3 Gbps
Concurrent Sessions: 720,000
New Sessions/sec: 85,000

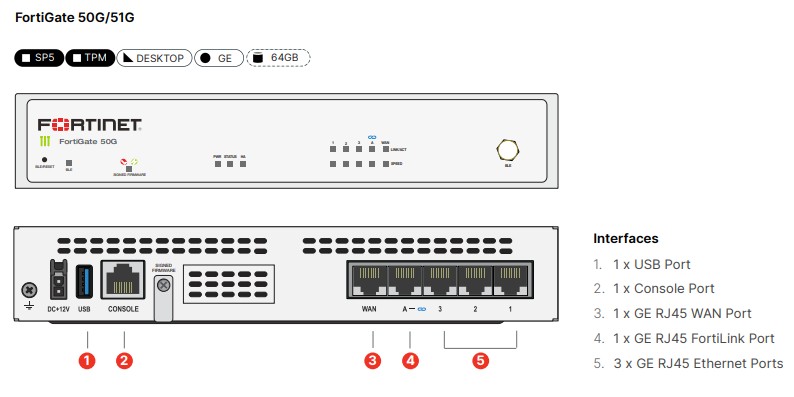

Cổng kết nối:
- 1 x GE RJ45 WAN
- 3 x GE RJ45 LAN
- 1 x GE RJ45 FortiLink
- 1 x USB Port
Hỗ trợ: SD-WAN, IPS, AV, Web Filtering, VPN, Application Control, ZTNA

Ưu điểm:

Hiệu năng bảo mật cao hơn FortiGate 40F
Phù hợp khoảng 25–50 user bật đầy đủ UTM
Hỗ trợ SD-WAN tối ưu nhiều đường truyền Internet
Tích hợp FortiOS Security Fabric dễ quản lý đồng bộ với switch/AP Fortinet

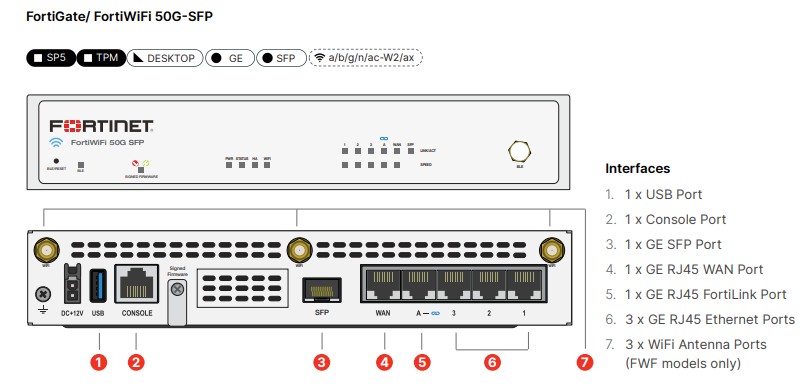

Thông số kỹ thuật của Firewall FortiGate FG-50G-SFP

Datasheet FortiGate-50G-SFP	5 x GE RJ45 ports (including 4 x Internal Ports, 1 x WAN Ports), 1x SFP port.
Hardware Specifications
Hardware Accelerated GE WAN Ports	1
Hardware Accelerated GE RJ45 Ports	3
Hardware Accelerated GE RJ45 PoE/+ Ports	–
Hardware Accelerated GE SFP Slots	1
Hardware Accelerated GE RJ45 FortiLink Port (Default)	1
USB Port	1
Console Port (RJ45)	1
Internal Storage	–
Trusted Platform Module (TPM)	✔
Bluetooth Low Energy (BLE)	✔
Antenna Ports (SMA)	–
Wireless Interface	–
System Performance — Enterprise Traffic Mix
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Threat Protection Throughput	1.1 Gbps
Firewall Throughput (1518/512/64 byte UDP packets)	5 / 5 / 4 Gbps
Firewall Latency (64 byte UDP packets)	2.42 μs
Firewall Throughput (Packets Per Second)	6 Mpps
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2000
IPsec VPN Throughput (512 byte)	4.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL-VPN Throughput	—
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	—
SSL Inspection Throughput (IPS, avg. HTTPS)	1.3 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	699
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	74,000
Application Control Throughput (HTTP 64K)	2.8 Gbps
CAPWAP Throughput (HTTP 64K)	3.8 Gbps
Virtual Domains (Default/Maximum)	5 / 5
Maximum Number of FortiSwitches Supported	8
Maximum Number of FortiAPs (Total/Tunnel Mode)	16 / 8
Maximum Number of FortiTokens	500
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.6 x 8.5 x 6.3
Height x Width x Length (mm)	40.5 x 216 x 160
Weight	2.2 lbs (1.0 kg)
Form Factor	Desktop
Operating Environment and Certifications
Power Rating	12VDC, 3A
Power Required	Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
Maximum Current	100V/0.4A, 240V/0.2A
Power Consumption (Average/Maximum)	8.3 W / 8.9 W
Heat Dissipation	30.35 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 10,000 ft (3048 m)
Compliance	FCC, ISED, CE, UL/cUL, CB
Certifications	USGv6/IPv6
