Thiết bị mạng Switch Cisco C1000-16T-E-2G-L

Thiết bị mạng Switch Cisco C1000-16T-E-2G-L

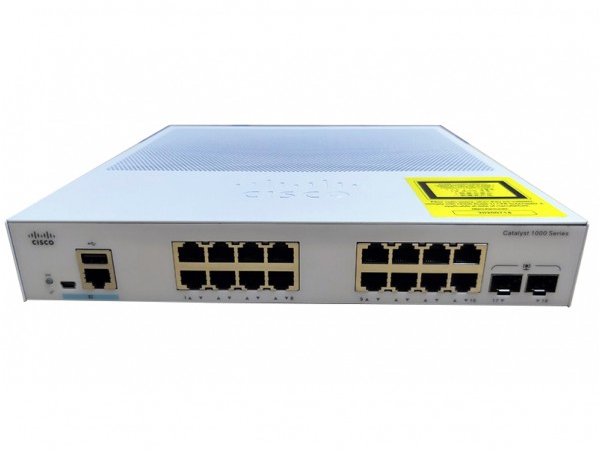

Tổng quan Switch Cisco C1000-16T-2G-L

Thiết bị chuyển mạch Switch Cisco C1000-16T-2G-L được thiết kế cho doanh nghiệp vừa và nhỏ, với giá rẻ hơn các dòng switch 2960x. C1000-16T-2G-L với thiết kế không quạt, có thể lắp đặt trực tiếp tại các khu vực làm việc.

Switch Cisco C1000-16T-2G-L cung cấp 16 cổng gigabit 10/100/1000, 2x 1G SFP uplinks cùng với phần mềm Cisco IOS, cung cấp các kết nối layer 2 cơ bản cho các chi nhánh hoặc văn phòng nhỏ.

Thông số kỹ thuật Thiết bị mạng Switch Cisco C1000-16T-E-2G-L

Description	Performance
Hardware
Interface	16x 10/100/1000 Ethernet ports, 2x 1G SFP uplinks
Console ports	1x RJ-45 Ethernet 1x USB-A port for storage and Bluetooth console
Indicator LEDs	Per-port status: link integrity, disabled, activity System status: system
Dimensions (WxDxH in inches)	10.56 x 10.69 x 1.73
Memory and processor
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	18 Gbps
Switching bandwidth	36 Gbps
Forwarding rate (64‑byte L3 packets)	26.78 Mpps
Unicast MAC addresses	16000
IPv4 unicast direct routes	542
IPv4 unicast indirect routes	256
IPv6 unicast direct routes	414
IPv6 unicast indirect routes	128
IPv4 multicast routes and IGMP groups	1024
IPv6 multicast groups	1024
IPv4/MAC security ACEs	600
IPv6 security ACEs	600
Maximum active VLANs	256
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	4
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
Ingress protection	IP20
Dying Gasp	Yes
Electrical
Power	Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Voltage (auto ranging)	110 to 220V AC in
Frequency	50 to 60 Hz
Current	0.16A to 0.26A
Power rating (maximum consumption)	0.05 kVA
Safety and compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011
EMC: Emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	USGv6 and IPv6 Ready Logo
